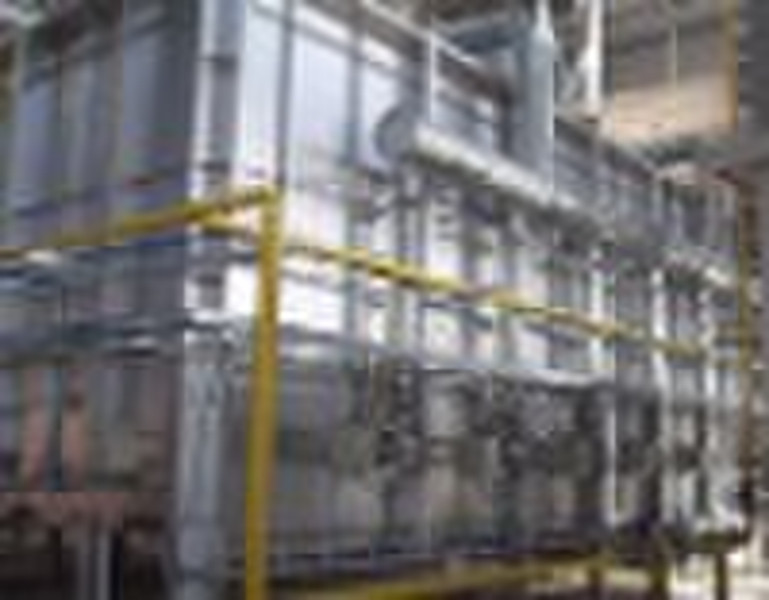

natural-gas annealing furnace

1.Technical features: Whole fibers liner, whole sealing furnace, each medium pressure control, furnace pressure control, high temperature high speed control burner. Computer + intelligent temperature controller instrument + manual control level 3 temperature control mode, low energy consumption, high stability. 1. Use: forging heating with 2. Working temperature: 1300 °C,Temperature-control accuracy: + 1 °C 3. Outfit furnace capacity: 5-ton - 100t 4 .Burner type and control modes: the SIO is high temperature, high speed burners combustion of air-fuel ratio, automatic control, gas pulse doublestage automatic ignition, flameout alarm 5. Door by lifting type, four cylinder pressure 6. Furnace car use double deck balance wheel to the structure, heat-resistant frame cast iron guard board, blunt gears - rack themselves go structure 7. Furnace for light steel frame structure, and the furnace wall bottom lining for high temperature castable, furnace roof and wall for fibers liner. Lateral sealing forcylinder driver lifting type soft seal 8. Temperature control modes: the upper industrial PC distributed control/intelligent temperature controller instrument + PLC control/manual control technical parameters
